Specyfikacja |
Okres gwarancji |
2 lat(a) |
Ostrzeganie |
Safety conditions for heat sink and fan
• Use the product in accordance with its intended use, as im- proper use may damage the product.
• Do not expose the device to moisture. • The device should be cleaned only with a dry cloth. • Independent repairs and modification result automatic loss
of the warranty.
• Hitting or dropping may damage the product. |
Funkcje techniczne |

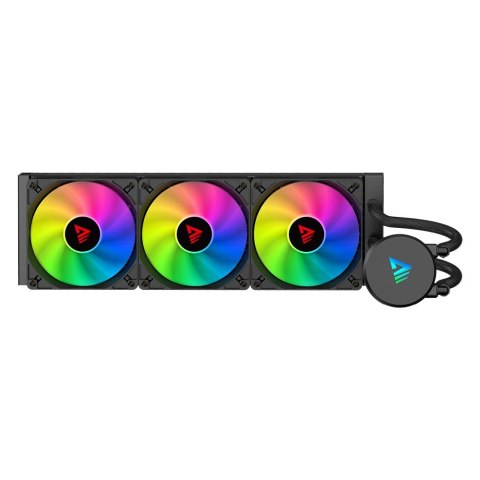

Technical specification:
• TDP: 300 W
• Cooling standard: 360 mm
• Radiator dimensions: 397 × 120 × 27 mm
• Cooling pipes length: 460 mm
• Heat sink material: Aluminium
• Water block base material: Copper
• Number of fans: 3 × 120 mm
• Fan power connector: 4-pin (PWM) (male + female)
• Fan LED connector: 3-pin (male + female)
• Pump power connectors: 3-pin
• Pump LED connector: 3-pin (male + female)
• Fan speed: 900 - 1800 RPM • Pump speed: 2250 - 2750 RPM
• Intel compatibility: LGA 775 / 1200 / 1151 /1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066
• AMD compatibility: AM4 / AM5
• Set contents: Radiator with pump, 3 × 120 mm fans, mounting
accessories, thermal paste, user manual |
Typ złącza LED |
3-pin |
Materiały |
Aluminium |
Materiały |
Miedź |
Kolor podświetlenia |
Mono |
Złącze wentylatora |
3-pin |
Oświetlenie LED |
Tak |
Liczba wentylatorów |
2 wentylatory |
Kolor produktu |
Czarny |
Certyfikaty |
This symbol indicates that electrical appliances should not be discarded with other household waste. Used equipment sho- uld be handed over to a local collection point for this type of waste or to a recycling center. Please contact your local authorities for information about disposal methods available in your area. Wa- ste electrical equipment may contain hazardous substances (e.g.
mercury, lead, cadmium, chromium, phthaltes) which can get
into air, soil and groundwater when leaking from used appliances.
Environmental pollution with these substances leads to their bio- accumulation, causing lesion of disease in living organisms, which
would pose a risk to human and animal health or life. Households
may contribute to environmental protecion by proper waste collection. In such way, hazardous substances from the equipment
are neutralized and valuable secondary raw materials are reused
for production of new equipment. |
Waga produktu |
1,53 kg |
Głębokość produktu |
150 mm |
Wysokość produktu |
450 mm |
Waga wraz z opakowaniem |
1,97 kg |
Szerokość produktu |
205 mm |
Prędkość obrotowa wentylatora 2 (min.) |
900 RPM |
Prędkość obrotowa wentylatora 2 (maks.) |
1800 RPM |
Przeznaczenie |
Procesor |
Obsługiwane gniazda procesora |
LGA 1700 |
Obsługiwane gniazda procesora |
LGA 1200 (Socket H5) |
Obsługiwane gniazda procesora |
LGA 2011 (Socket R) |
Obsługiwane gniazda procesora |
LGA 1151 (Socket H4) |
Obsługiwane gniazda procesora |
LGA 775 (Socket T) |
Obsługiwane gniazda procesora |
LGA 1150 (Socket H3) |
Obsługiwane gniazda procesora |
LGA 1155 (Socket H2) |
Obsługiwane gniazda procesora |
LGA 1156 (Socket H) |
Obsługiwane gniazda procesora |
LGA 2066 |
Prędkość obrotowa (max) |
1800 RPM |
Średnica wentylatora 2 |
12 cm |
Prędkość obrotowa (min) |
900 RPM |
Model |
Chłodnica cieczy all-in-one |
Modulacja szerokości impulsu (PWM) wsparcie |
Tak |
Średnica czaszy wentylatora |
36 cm |
Ilość sztuk |
1 |
Złącze pompy |
3-pin |
Obsługiwane produkty |
Compatibilidad con Intel: LGA 775 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066
Compatibilidad con AMD: AM4 / AM5 |
Podręcznik użytkownika |
Tak |
W zestawie pilot zdalnego sterowania |
Nie |
Liczba śrub |
24 |
Instrukcja montażu |
Tak |
Dołączone pady termiczne |
Nie |
Zestaw do montażu |
Tak |
Baterie w zestawie |
Nie |
Dołączone śruby |
Tak |
Utylizacja odpadów elektrycznych i elektronicznych (WEEE) |
Tak |
Pasta termoprzewodząca |
Tak |
Dostępna karta informacyjna produktu lub artykułu? |
Tak |
Szerokość |
450mm |
Długość |
210mm |
Wysokość |
146mm |
